Product Summary
The TA8690AN is a pal/ntsc dual mode color TV single chip signal processing IC. It is provided with the circuit of PIF, SIF, video, chroma, deflection. And the package the small DIP. With this item, the TA8690AN is to be composed of fewer components, and with small ared.
Parametrics
TA8690AN absolute maximum ratings: (1)Power supply voltage VCC: 15V; (2)Power dissipation PD max: 1923W; (3)Input signal volage ein: 5Vp-p; (4)Operating temperature Topr: -20 to 65℃; (5)Storage temperature Tstg: -55 to 150℃.
Features
TA8690AN features: (1)3 stage variable gain IF AMP; (2)High speed response AGC with dual time conatants; (3)Single end AFT output with defeat function; (4)RF delay AGC output; (5)Internal black/white noise inverter.

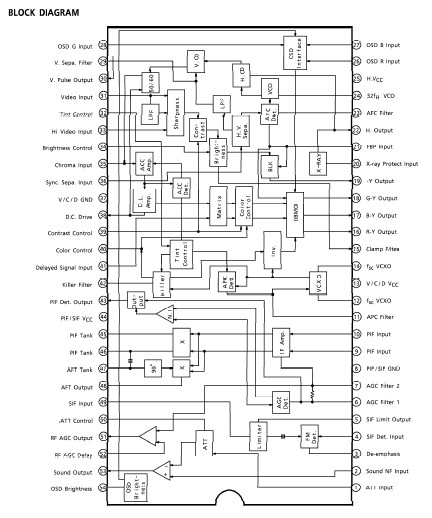

Diagrams
 |
