Product Summary

The 9001-05-00 is a molded SIP reed relay. It has high reliability and consistent performance which are desired in a compact package. It is ideally suited for automatic test equipment, instrumentation, RF and telecommunications applications.

Parametrics

9001-05-00 specifications: (1)Insulation resistance(minimum): 10 12Ω; (2)Capacitance-typical: 0.7pF; (3)Open contact to coil: 1.4pF; (4)Dielectric strength(minimum), Between contacts: 300VDC/peak AC, contacts/shield to coil: 1500VDC/peak AC; (5)Operate time-including bounce-typical: 0.35msec; (6)Release time-typical: 0.1msec.

Features

9001-05-00 features: (1)High insulation resistance- 10 12Ω minimum(10 13Ω typical); (2)High reliability, hermetically sealed contacts for long life(tested to 1 Billion operations); (3)High dielectric strength available, consult factory; (4)High speed switching compared to electromechanical relays; (5)Molded thermoset body on integral lead trame design; (6)Optional coil suppression diode-protects coil drive circuits.

Diagrams

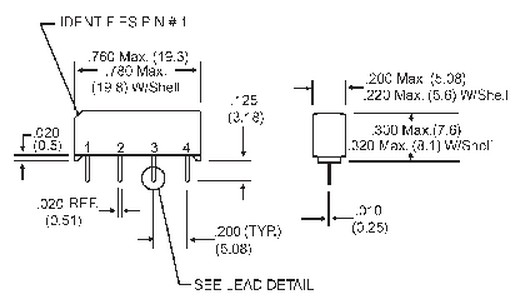

9001-05-00 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

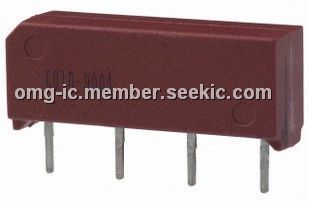

9001-05-00
9001-05-00
Coto Technology
Reed Relay SIP Reed Relay
Data Sheet
0-1: $1.58
1-10: $1.50
10-50: $1.43
50-100: $1.31
