Product Summary
The VT6105 Rhine III Fast Ethernet Adapter is a 10/100Mbps Fast Ethernet controller designed to provide system designers an easy to integrate single chip solution, with advanced management and power conservation features.
Parametrics
VT6105 absolute maximum ratings: (1)Model: VT6105; (2)Size: 6.21 Mb; (3)Version: 2.7; (4)Date added: 04-Jun-2007, 06:58; (5)Manufacturer: VIA; (6)Device type: Network; (7)Operation system: Windows XP / XP 64bit.
Features
VT6105 features: (1)Single chip full/half duplex 10/100Mbps Fast Ethernet Management Controller; (2)IEEE 802.3/802.3u 10Base-T and 100Base-TX compatible; (3)32bit PCI 2.2 Bus-Master Interface; (4)Low power 100Base-TX transceiver embedded; (5)Supports 10Mbps and 100Mbps N-way auto-negotiation operation; (6)FIFO buffers to reduce CPU utilization; (7)Supports ACPI including Wake on LAN ; (8)Wake on LAN (W-O-L) feature for power management of connected devices; (9)Network Remote boot (RPL and PXE); (10)WFM 2.0 remote network access ; (11)Four LED support for status ; (12)DMI 2.0; (13)IO 3.3v/core 2.5v power, and PCI bus 5V tolerant; (14)Low power 0.22um TSMC CMOS process.

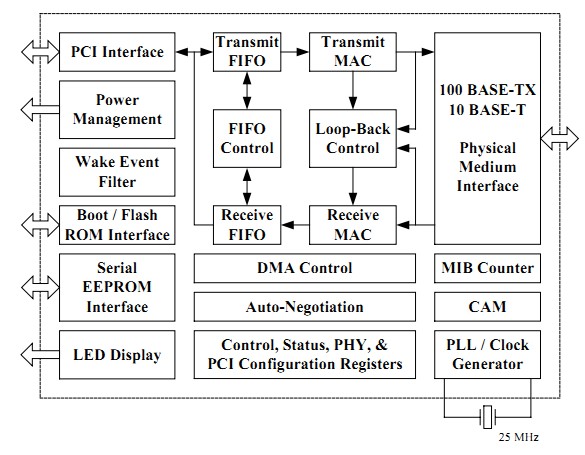

Diagrams
 |
