Product Summary

The HCPL-0710-500E is a 40 ns Propagation Delay, CMOS Optocoupler. Available in either an 8-pin DIP or SO-8 package style respectively, the HCPL-0710-500E utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-0710-500E requires only two bypass capacitors for complete CMOS compatibility. The applications of it are Digital feldbus isolation, DeviceNet, SDS, Profbus, AC plasma display panel level shifting, Multiplexed data transmission, Computer peripheral interface, Microprocessor system interface.

Parametrics

HCPL-0710-500E absolute maximum ratings: (1)Storage Temperature:–55 to 125℃; (2)Ambient Operating Temperature:–40 to +100℃; (3)Supply Voltages:0 to 6.0Volts; (4)Input Voltage:–0.5 to VDD1 +0.5Volts; (5)Output Voltage:–0.5 to VDD2 +0.5Volts; (6)Input Current:–10 to +10mA; (7)Average Output Current:10mA; (8)Lead Solder Temperature:260℃ for 10 sec., 1.6 mm below seating plane.

Features

HCPL-0710-500E features: (1)+5 V CMOS compatibility; (2)8 ns maximum pulse width distortion; (3)20 ns maximum prop. delay skew; (4)High speed: 12 Mbd; (5)40 ns maximum prop. delay; (6)10 kV/μs minimum common mode rejection; (7)-40℃ to 100℃ temperature range; (8)Safety and regulatory approvals UL Recognized; (9)3750 V rms for 1 min. per UL 1577; (10)5000 V rms for 1 min. per UL 1577 (for HCPL-7710 option 020); (11)CSA Component Acceptance Notice #5; (12)IEC/EN/DIN EN 60747-5-2: VIORM = 560 Vpeak for HCPL-0710 Option 060.

Diagrams

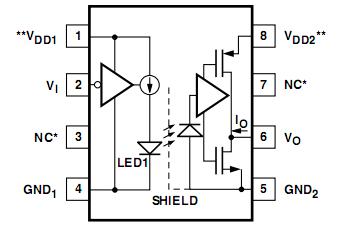

HCPL-0710-500E pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0710-500E
HCPL-0710-500E

Avago Technologies

High Speed Optocouplers 1Ch 150mA 600mW

Data Sheet

0-1: $3.17
1-25: $2.59
25-100: $2.30
100-250: $2.08
