Product Summary
The HCPL-0630-500E is an optically coupled gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. The applications of the HCPL-0630-500E inlcude isolated line receiver, computer-peripheral interfaces, microprocessor system interfaces, digital isolation for a/d, d/a conversion, switching power supply, instrument input/output isolation, ground loop elimination, pulse transformer replacement, power transistor isolation in motor drives, isolation of high speed logic systems. The package of the HCPL-0630-500E is 8-SOIC.
Parametrics
HCPL-0630-500E absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 85℃; (3)Input Power Dissipation, PI: 40mW max; (4)Supply Voltage (1 Minute Maximum), VCC: 7V max; (5)Enable Input Current, IE: 5mA max; (6)Output Collector Current, IO: 50mA max; (7)Output Collector Voltage, VO: 7V max.
Features
HCPL-0630-500E features: (1)High speed: 10 MBd typical; (2)LSTTL/TTL compatible; (3)Low input current capability: 5mA; (4)Guaranteed ac and dc performance over temper ature: -40℃ to +85℃; (5)Available in 8-Pin DIP, SOIC-8, widebody packages; (6)Strobable output (single channel products only); (7)Safety approval.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

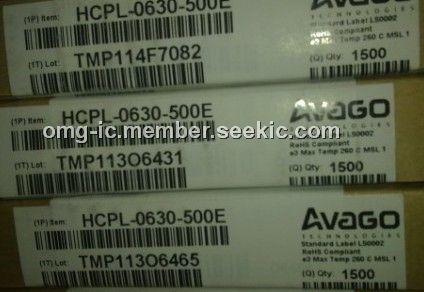

 HCPL-0630-500E |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
