Product Summary
The 9007-05-00 is a reed relay. It is a good choice for a wide variety of designs where economy, performance and a compact package are needed. The applications of 9007-05-00 include security, instrumentation and modems.
Parametrics
9007-05-00 specifications: (1)Insulation resistance(minimum): 10 10Ω; (2)Capacitance-typical: 0.7pF; (3)Open contact to coil: 1.4pF; (4)Dielectric strength(minimum), Between contacts: 300VDC/peak AC, contacts/shield to coil: 1500VDC/peak AC; (5)Operate time-including bounce-typical: 0.35msec; (6)Release time-typical: 0.1msec.
Features
9007-05-00 features: (1)Hermetically sealed contacts for long life; (2)High dielectric strength available, consult factory; (3)High speed switching compared to electromechanical relays; (4)Molded thermoset body on integral lead frame design; (5)Optional coil suppression diode- protects coil drive circuits.

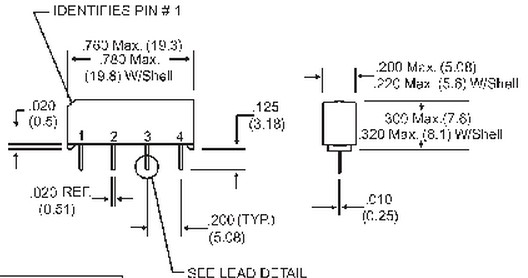

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 9007-05-00 |
Coto Technology |
Reed Relay Spartan SIP Relay |
Data Sheet |
|
|
||||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||||
 |
9007 |
Keystone Electronics |
PLUG CONTACT SHROUD SPR 20AWG RD |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
9007-05-00 |
Coto Technology |
Reed Relay Spartan SIP Relay |
Data Sheet |
|
|
||||||||||||||||||||
|
9007-05-01 |
Coto Technology |
Reed Relay 1FORMA 5V W/DIODE |
Data Sheet |
|
|
||||||||||||||||||||
|
9007-05-02 |
Coto Technology |
Reed Relay SIP REED 5 VOLTS 9000 SERIES |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
9007-05-10 |
|
RELAY REED SPST 500MA 5V |
Data Sheet |
|
|
||||||||||||||||||||
 |
9007-05-11 |
|
RELAY REED SPST 500MA 5V |
Data Sheet |
|
|
||||||||||||||||||||
