Product Summary
The DS2Y-S-DC5V is a miniature relay. Its applications include telecommunication equipment, office equipment, computer peripherals, security alarm systems and medical equipment.
Parametrics
DS2Y-S-DC24V absolute maximum ratings: (1)Max. switching power: 60W, 62.5VA; (2)Max. switching voltage: 220VDC, 250VAC; (3)Max. switching current: 2A; (4)Max. carrying current: 3A.
Features
DS2Y-S-DC5V features: (1)2 Form C contact; (2)High sensitivity-200 mW nominal operating power; (3)High breakdown voltage:
1500V FCC surge between open contacts; (4)DIP-2C type matching 16pin IC socket; (5)Sealed construction.

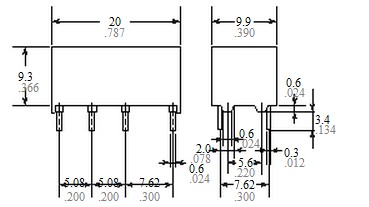

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS2Y-S-DC5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC DPDT SEALED PCB |
Data Sheet |
|
|
||||||||||||
|
DS2Y-S-DC5V-R |
Panasonic Electric Works |
Low Signal Relays - PCB 5VDC 200MW DIP RELAY MINI |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DS2Y-S-DC5V-TB |
Panasonic Electric Works |
Low Signal Relays - PCB 5VDC 200MW DIP RELAY MINI |
Data Sheet |
|
|
||||||||||||
