Product Summary

The G6B-1174P-US is a subminiature relay that switches up to 5A.

Parametrics

G6B-1174P-US specifications: (1)Rated carry current: 5A; (2)Max. switching voltage: 380VAC, 125VDC; (3)Max. switching current: 5A; (4)Max. switching capacity: 1250VA, 150W; (5)Min. permissible load(reference value): 10mA at 5VDC.

Features

G6B-1174P-US features: (1)Subminiature: 20×10×10mm; (2)Low power consumption: 200mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Fully sealed construction; (5)Single and dual coil latching types also available; (6)High capacity versions available; (7)RoHS Compliant.

Diagrams

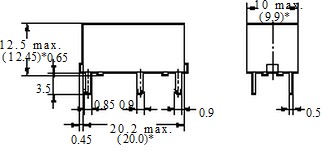

G6B-1174P-US dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G6B-1174P-US DC3
G6B-1174P-US DC3
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.33
1-25: $4.06
25-50: $3.96
50-100: $3.76
G6B-1174P-US-DC12
G6B-1174P-US-DC12
Omron Electronics
General Purpose / Industrial Relays High-Capacity SPST-NO 12VDC
Data Sheet
0-1: $3.70
1-25: $3.57
25-50: $3.45
50-100: $3.10
G6B-1174P-US-DC5
G6B-1174P-US-DC5
Omron Electronics
General Purpose / Industrial Relays High-Capacity SPST-NO 5VDC
Data Sheet
0-1: $3.89
1-25: $3.62
25-50: $3.45
50-100: $3.13
G6B-1174P-US-DC24
G6B-1174P-US-DC24
Omron Electronics
General Purpose / Industrial Relays High-Capacity SPST-NO 24VDC
Data Sheet
0-1: $3.32
1-25: $3.13
25-50: $3.05
50-100: $2.92
G6B-1174P-US-DC6
G6B-1174P-US-DC6
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.27
1-25: $3.88
25-50: $3.56
50-100: $3.28
G6B-1174P-US-P6B DC12
G6B-1174P-US-P6B DC12
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.51
1-25: $4.28
25-50: $3.93
50-100: $3.58
G6B-1174P-US-P6B DC6
G6B-1174P-US-P6B DC6
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.51
1-25: $4.28
25-50: $3.93
50-100: $3.58
G6B-1174P-US-P6B DC5
G6B-1174P-US-P6B DC5
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.51
1-25: $4.28
25-50: $3.93
50-100: $3.58
