Product Summary
The AM29LV040B-70ED is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288 bytes. The data appears on DQ0-DQ7. The AM29LV040B-70ED is available in 32-pin PLCC and 32-pin TSOP packages. All read, erase, and program operations are accomplished using only a single power supply. The AM29LV040B-70ED can also be programmed in standard EPROM programmers. The device offers access times of 60, 70, 90, and 120 ns allowing high speed microprocessors to operate without wait states.
Parametrics
AM29LV040B-70ED absolute maximum ratings: (1)Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: –0.5 V to +4.0 V; (4)A9, OE#: –0.5 V to +12.5 V; (5)All other pins: –0.5 V to VCC+0.5 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29LV040B-70ED features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Minimum 1,000,000 erase cycles guaranteed; (7)20-year data retention at 125℃; (8)Compatibility with JEDEC standards; (9)Erase Suspend/Resume; (10)Unlock Bypass Program Command; (11)Embedded Algorithms.

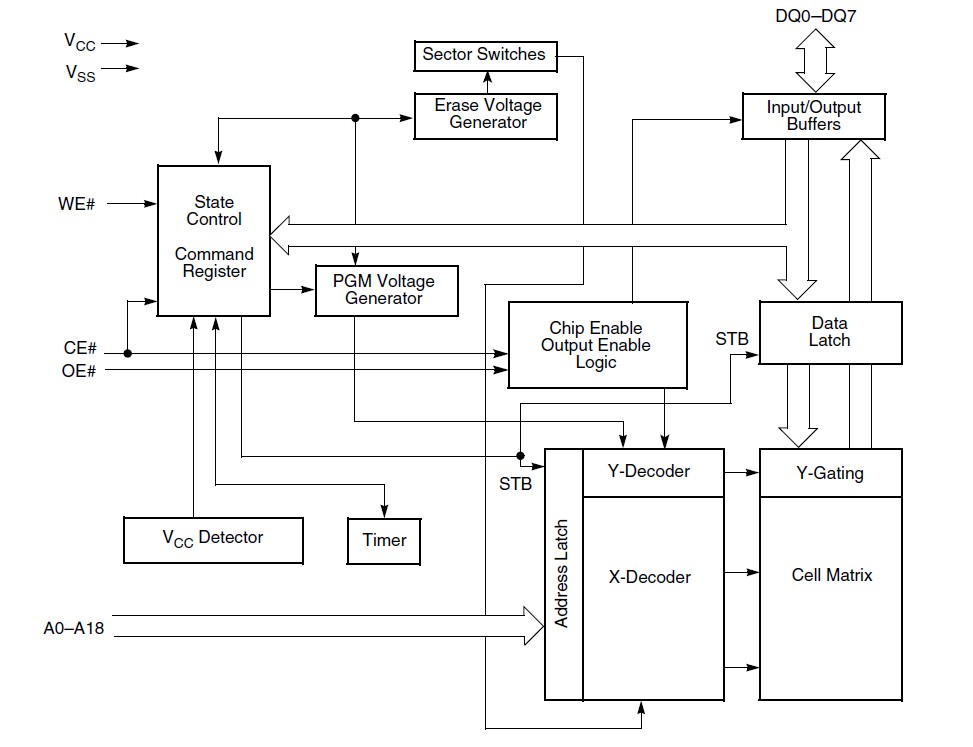

Diagrams
 |
