Product Summary

The LIS3LV02DLTR is a three axis digital output linear accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element. The applications of the LIS3LV02DLTR include free-fall detection, motion activated functions in portable terminals, antitheft systems and inertial navigation, gaming and virtual reality input devices, vibration monitoring and compensation.

Parametrics

LIS3LV02DLTR absolute maximum ratings: (1)Supply voltage, Vdd: -0.3 to 6V; (2)I/O pins supply voltage, Vdd IO: -0.3 to Vdd +0.1V; (3)Input voltage on any control pin, Vin: -0.3 to Vdd IO +0.3V; (4)Acceleration, A POW: 3000g for 0.5ms, 10000g for 0.1ms; (5)Acceleration, A UNP: 3000g for 0.5ms, 10000g for 0.1ms; (6)Operating temperature range, T OP: -40 to 85℃; (7)Storage temperature range, TSTG: -40 to +125℃; (8)Electrostatic discharge protection, EDS: 4.0(HBM)kV, 200(MM)V, 1.5(CDM)kV.

Features

LIS3LV02DLTR features: (1)2.16V to 3.6V single supply operation; (2)1.8V compatible IOs; (3)I2C/SPI digital output interfaces; (4)Programmable 12 or 16 bit data representation; (5)Interrupt activated by motion; (6)Programmable interrupt threshold; (7)Embedded self test; (8)High shock survivability; (9)ECOPACK compliant.

Diagrams

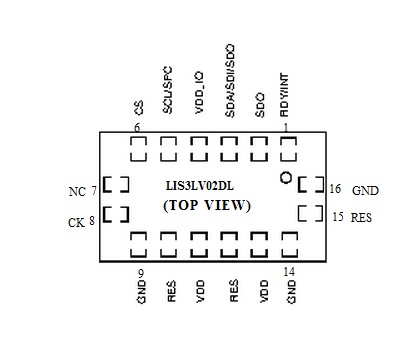

LIS3LV02DLTR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LIS3LV02DLTR
LIS3LV02DLTR
STMicroelectronics
Board Mount Accelerometers MEMS INERTIAL snsr 3 axis
Data Sheet
0-2988: $3.59
2988-4000: $3.45
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LIS302ALB
LIS302ALB
STMicroelectronics
Board Mount Accelerometers MEMS motion snsr 3 axis
Data Sheet
Negotiable
LIS302ALBTR
LIS302ALBTR
STMicroelectronics
Board Mount Accelerometers MEMS Motion Sensor
Data Sheet
Negotiable
LIS302DL
LIS302DL
STMicroelectronics
Board Mount Accelerometers MEMS motion snsr 3 axis
Data Sheet
0-1: $2.49
1-10: $2.42
10-100: $2.26
100-250: $2.19
LIS302DLTR
LIS302DLTR
STMicroelectronics
Board Mount Accelerometers MEMS Motion Sensor
Data Sheet
0-3660: $1.13
3660-5000: $1.05
LIS331DL
LIS331DL
STMicroelectronics
Board Mount Accelerometers MEMS MOTION SENSOR 3-AXIS
Data Sheet
0-1: $1.27
1-10: $1.07
10-100: $1.01
100-250: $0.97
LIS332AX
LIS332AX
STMicroelectronics
Board Mount Accelerometers MEMS 3-Axis 2g Absolute Analog
Data Sheet
0-1: $2.69
1-10: $2.40
10-100: $1.97
100-250: $1.78
