Product Summary

The LM741AH is a general purpose operational amplifier which features improved performance over industry standards like the LM709. The LM741AH is direct, plug-in replacement for the 709C, LM201, MC1439 and 748 in most applications. The LM741AH offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations.

Parametrics

LM741AH absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Power Dissipation: 500 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short Circuit Duration: Continuous; (6)Operating Temperature Range: -55℃ to +125℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Junction Temperature: 150℃; (9)Soldering Information N-Package (10 seconds): 260℃; (10)ESD Tolerance: 400V.

Features

LM741AH electrical characteristics: (1)Input Offset Voltage: 0.8 to 3.0 mV; (2)Input Offset Voltage Adjustment Range: ±10 mV; (3)Input Offset Current: 3.0 to 30 nA; (4)Input Bias Current: 30 to 80 nA; (5)Input Resistance: 1.0 to 6.0 MΩ.

Diagrams

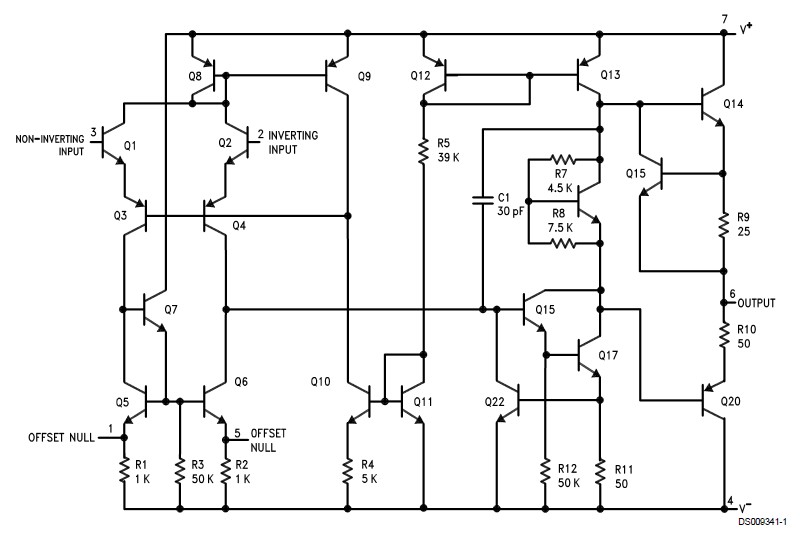

LM741AH block diagram
