Product Summary
The P102W is a passivated assembled circuit element. The P102W Integrated Power Circuit consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications include power supplies, control circuits and battery chargers.
Parametrics
P102W maximum ratings: (1)ID: 25 A; (2)ID @ TC: 85 ℃; (3)IFSM @50Hz: 357 A; (4)IFSM @ 60Hz: 375 A; (5)I2t @50Hz: 637 A2s; (6)I2t @ 60Hz: 580 A2s; (7)VRRM: 400 to 1200 V; (8)VINS: 2500 V; (9)TJ: - 40 to 125 ℃.
Features
P102W features: (1)Glass passivated junctions for greater reliability; (2)Electrically isolated base plate; (3)Available up to 1200 VRRM, VDRM; (4)High dynamic characteristics; (5)Wide choice of circuit configurations; (6)Simplified mechanical design and assembly.
Diagrams
<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201262911536614.jpg"></P>
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P102W |
SCR HY-BRIDGE 600V 25A PACE-PAK |
Data Sheet |
|
|
||||||||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
P102 |
SCR HY-BRIDGE 600V 25A PACE-PAK |
Data Sheet |
|
|
||||||||||||||||||||||

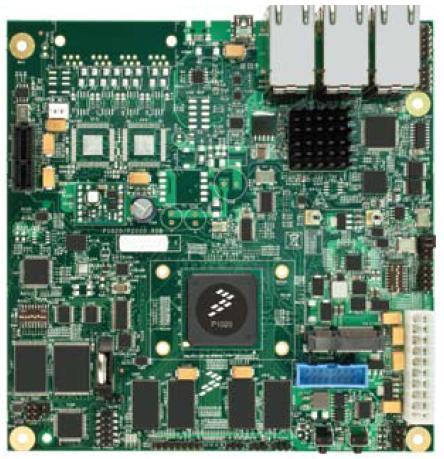

P1020RDB-PA |
