Product Summary
The S29AL016D70BAI010 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The S29AL016D70BAI010 is offered in 48-ball FBGA, and 48-pin TSOP packages. The word-wide data(x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The S29AL016D70BAI010 can also be programmed in standard EPROM programmers.
Parametrics
S29AL016D70BAI010 absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V, A9, OE#, and RESET#: –0.5 V to +12.5 V, All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
S29AL016D70BAI010 features: (1)High performance: Access times as fast as 70 ns; (2)Ultra low power consumption (typical values at 5 MHz): 200 nA Automatic Sleep mode current, 200 nA standby mode current, 9 mA read current, 20 mA program/erase current; (3)Cycling endurance: 1,000,000 cycles per sector typical; (4)Data retention: 20 years typical; (5)Package Options: 48-ball FBGA, 48-pin TSOP, 44-pin SOP.

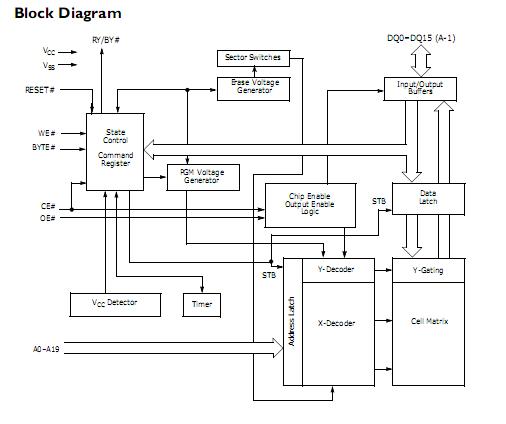

Diagrams
 |
