Product Summary
The SST39VF800A-70-4C-EKE is a 64K x16 CMOS Multi-Purpose Flash (MPF). It is manufactured with SST’s proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF800A-70-4C-EKE writes (Program or Erase) with a single voltage power supply of 3.0 to 3.6V and 2.7 to 3.6V, respectively.
Parametrics
SST39VF800A-70-4C-EKE absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (8)Output Short Circuit Current: 50 mA.
Features
SST39VF800A-70-4C-EKE features: (1)Organized as 64k x16; (2)Single Voltage Read and Write Operations; (3)Superior Reliability; (4)Low Power Consumption; (5)Sector-Erase Capability; (6)Fast Read Access Time; (7)Latched Address and Data; (8)Fast Erase and Word-Program; (9)Automatic Write Timing; (10)End-of-Write Detection; (11)CMOS I/O Compatibility; (12)JEDEC Standard; (13)Packages Available.

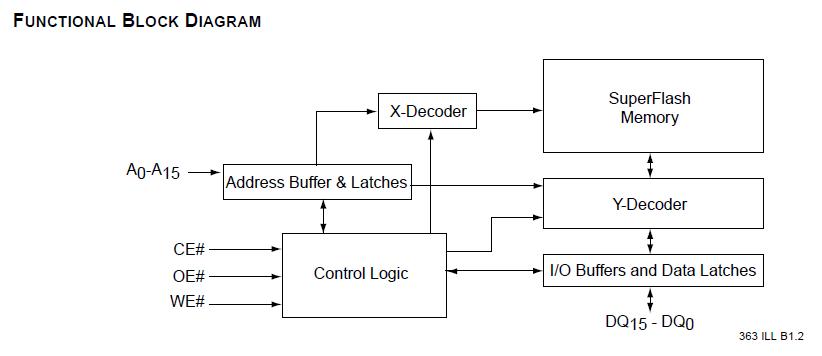

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39VF800A-70-4C-EKE |
Microchip Technology |
Flash 512K X 16 70ns |
Data Sheet |
|
|
||||||||||||
|
SST39VF800A-70-4C-EKE-T |
Microchip Technology |
Flash 8M (512Kx16) 70ns 2.7-3.6V Commercial |
Data Sheet |
|
|
||||||||||||
