Product Summary

The TK15A60U is a field effect transistor Silicon N channel MOS type.

Parametrics

TK15A60U absolute maximum ratings: (1)Drain-source voltage VDSS: 600 V; (2)Gate-source voltage VGSS: ±30 V; (3)DC ID: 15A; (4)Drain current Pulse (t = 1 ms) IDP: 30A; (5)Drain power dissipation (Tc = 25℃) PD: 40 W; (6)Single pulse avalanche energy EAS: 81 mJ; (7)Avalanche current IAR: 15 A; (8)Repetitive avalanche energy EAR: 4 mJ; (9)Channel temperature Tch: 150℃; (10)Storage temperature range Tstg: -55 to 150℃.

Features

TK15A60U features: (1)Low drain-source ON-resistance: RDS (ON) = 0.24 (typ.); (2)High forward transfer admittance: .Yfs. = 8.5 S (typ.); (3)Low leakage current: IDSS = 100μA (VDS = 600 V); (4)Enhancement mode: Vth = 3.0 to 5.0 V (VDS = 10 V, ID = 1 mA).

Diagrams

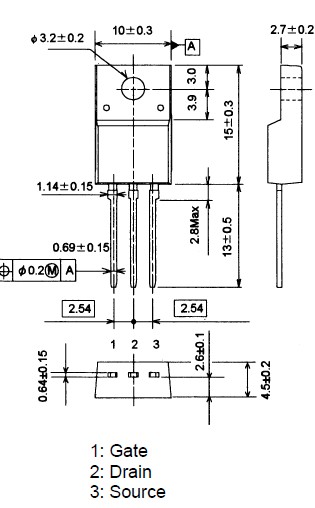

TK15A60U package diagram
