Product Summary

The W9825G6JH-6 is a high-speed synchronous dynamic random access memory (SDRAM). The W9825G6JH-6 delivers a data bandwidth of up to 100M words per second. To fully comply with the personal computer industrial standard, it is sorted into the following speed grade: -5, -6, -6I and -75. The -5 grade parts is compliant to the 200MHz/CL3 specification.

Parametrics

W9825G6JH-6 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.5 to VDD+0.5(0.6Vmax); (2)Voltage on VDD supply relative to Vss: -0.5 to 4.6V; (3)Operating temperature: 0 to 70°C; (4)Storage temperature: -55 to 150°C; (5)Soldering temperature: 260°C; (6)Power dissipation: 1W; (7)Short circuit output current: 50mA.

Features

W9825G6JH-6 features: (1)3.3V to 0.3V power supply; (2)Up to 200MHz clock frequency; (3)4194304 words, 4 banks, 16 bits organization; (4)Self refresh mode: standard and low power; (5)Burst read, single writes mode; (6)Byte data controlled by LDQM, UDQM; (7)Power down mode; (8)Auto-precharge and controlled precharge; (9)8K refresh cycles/64ms.

Diagrams

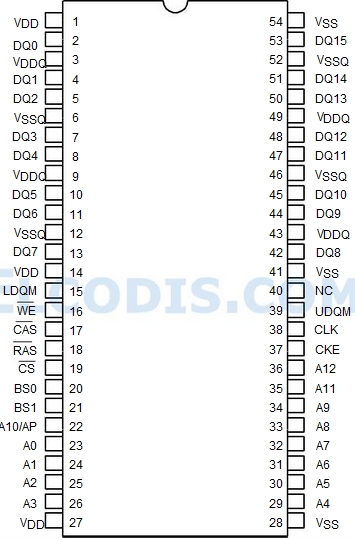

W9825G6JH-6 pin configuration
