Product Summary
The G2RK-2-DC24V is a power relay for a Variety of purposes with various models.
Parametrics
G2RK-2-DC24V absolute maximum ratings: (1)Rated voltage: 24VAC; (2)Rated current, 50Hz: 46.5mA; (3)Rated current, 60Hz: 37.5mA; (4)Coil resistance: 260Ω; (5)Must operate voltage 80% max. of rated voltage; (6)Must release voltage 30% min. of rated voltage; (7)Max. voltage 140% of rated voltage (at 23°C); (8)Power consumption Approx. 0.9VA at 60Hz (approx. 0.7VA at 60Hz).
Features
G2RK-2-DC24V features: (1)Creepage distance of 8.0 mm min. between coil and contact; (2)Dual-winding latching type available; (3)Plug-in and quick-connect terminals available (see G2R-S(S) data sheet); (4)High sensitivity (360mW) and high capacity (16A) types available; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6)Safety-oriented design assuring high surge resistance: 10000V min. between coil and contacts; (7)UL recognized /CSA certified.

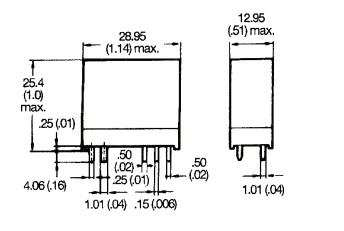

Diagrams
 |
