Product Summary
The TPS73601DBVR is a low-dropout (LDO) linear voltage regulator. It uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. The TPS73601DBVR also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current.
Parametrics
TPS73601DBVR absolute maximum ratings: (1)VIN range: -0.3 to 6.0V; (2)VEN range: -0.3 to 6.0V; (3)VOUT range: -0.3 to 5.5V; (4)Junction temperature range, TJ: -55 to +150℃; (5)Storage temperature range: 65 to +150℃; (6)ESD rating, HBM: 2kV; (7)ESD rating, CDM: 500V.
Features
TPS73601DBVR features: (1)Stable with No Output Capacitor or Any Value or Type of Capacitor; (2)Input Voltage Range of 1.7V to 5.5V; (3)Ultra-Low Dropout Voltage: 75mV typ; (4)Excellent Load Transient Responseith or without Optional Output Capacitor; (5)New NMOS Topology Delivers Low Reverse Leakage Current.

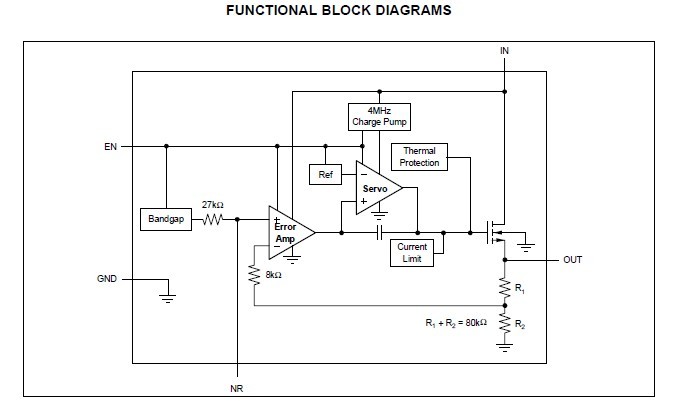

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS73601DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators Cap-Free NMOS 400mA |
Data Sheet |
|
|
||||||||||||
|
TPS73601DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Cap-Free NMOS 400mA |
Data Sheet |
|
|
||||||||||||
