Product Summary

The 3610KL-05W-B49 is a DC axial fan.

Parametrics

3610KL-05W-B49 specifications: (1)Rated voltage: 24V; (2)Operating voltage: 10-25V; (3)Current: 0.16A; (4)Input power: 3.84W;(5)Speed: 3200min-1; (6)Max. air flow: 54.7CFM, 1.55m3/min; (7)Max. static pressure: 0.19 in H2O, 48.0Pa; (8)Noise: 41.0dB; (9)Mass: 95g.

Features

3610KL-05W-B49 features: (1)Ball Bearing; (2)Sensor type.

Diagrams

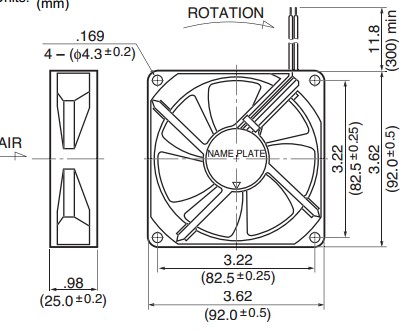

3610KL-05W-B49 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3610KL-05W-B49-D00
3610KL-05W-B49-D00


FAN DC AXIAL 24V 92X25 LOCK RTR

Data Sheet

0-300: $4.72
3610KL-05W-B49-D50
3610KL-05W-B49-D50


FAN DC AXIAL 24V 92X25 TAC

Data Sheet

0-300: $4.50
3610KL-05W-B49-G50
3610KL-05W-B49-G50


FAN DC AXIAL 24V 92X25 TAC

Data Sheet

0-300: $4.72
3610KL-05W-B49-G00
3610KL-05W-B49-G00


FAN DC AXIAL 24V 92X25 LOCK RTR

Data Sheet

0-300: $4.72
