Product Summary
The ADXL325BCPZ is a small, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. It measures acceleration with a minimum full-scale range of ±5g. The applications of the ADXL325BCPZ include mobile devices, gaming systems, disk drive protection, image stabilization, sports and health devices.
Parametrics
ADXL325BCPZ absolute maximum ratings: (1)Acceleration(Any Axis, Unpowered): 10000g; (2)Acceleration(Any Axis, Powered): 10000g; (3)VS: -0.3V to +3.6V; (4)All other pins: (COM -0.3V) TO (VS +0.3V); (5)Temperature range(Power): -55°C to +125°C; (6)Temperature range(Storage): -65°C to +150°C.
Features
ADXL325BCPZ features: (1)3-axis sensing; (2)Small, low profile package; (3)Low power: 350μA typical; (4)Single-supply operation: 1.8V to 3.6V; (5)10000g shock survival; (6)Excellent temperature stability; (7)Bandwitdth adjustment with a single capacitor per axis; (8)RoHS/WEEE lead-free compliant.

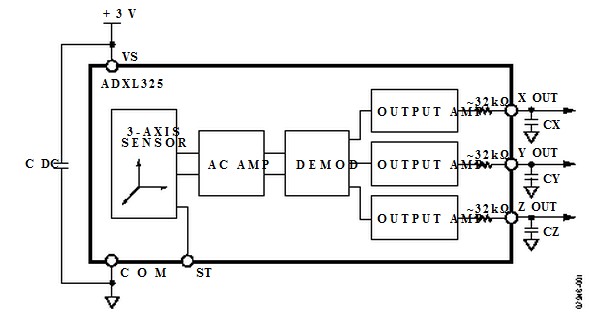

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL325BCPZ |
|
IC ACCELEROMETER 3AX 5G 16LFCSP |
Data Sheet |
|
|
||||||||
|
ADXL325BCPZ-RL |
|
IC ACCELEROMETER 3AX 5G 16LFCSP |
Data Sheet |
|
|
||||||||
 |
ADXL325BCPZ-RL7 |
|
IC ACCELEROMETER 3AX 5G 16-LFCSP |
Data Sheet |
|
|
||||||||
