Product Summary

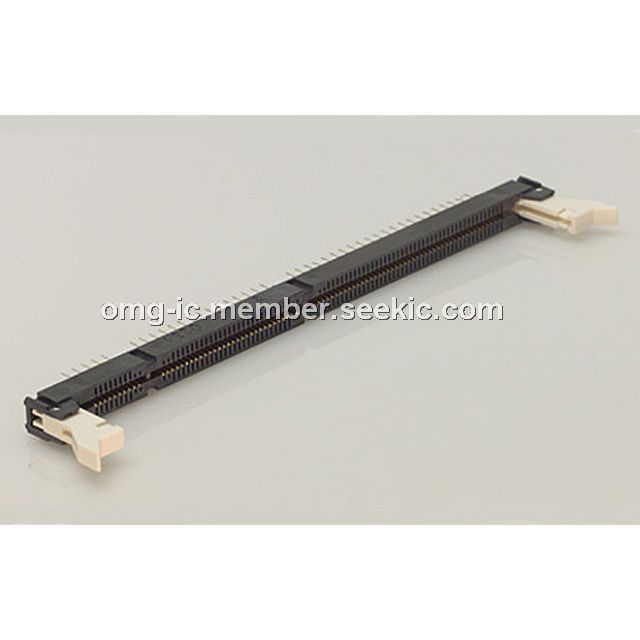

The 71736-0011 is a Pitch DIMM DRAM Socket.
Parametrics
71736-0011 general specifications: (1)PC Tail Length:3.23mm (.127”); (2)PCB Locator:Yes; (3)PCB Retention:Yes; (4)PCB Thickness - Recommended:1.57mm (.062”); (5)Packaging Type:Tray; (6)Pitch - Mating Interface:1.27mm (.050”); (7)Pitch - Termination Interface:1.27mm (.050”); (8)Plating min - Mating:0.051μm (2μ); (9)Plating min - Termination:3.810μm (150μ); (10)Temperature Range - Operating:-40℃ to +85℃; (11)Termination Interface: Style Through Hole; (12)Current - Maximum per Contact:1A; (13)Voltage - Maximum:100V AC (RMS)/DC; (14)Voltage Key:Center; (15)Duration at Max. Process Temperature (seconds):40; (16)Lead-free Process Capability:Wave Capable (TH only); (17)Max. Cycles at Max. Process Temperature:3℃; (18)Process Temperature max. C:260℃.
Features
71736-0011 features: (1)Circuits (Loaded):168; (2)Circuits (maximum):168; (3)Color - Resin:Black, Natural; (4)Durability (mating cycles max):25; (5)Entry Angle:Vertical; (6)Flammability:94V-0; (7)Function Key:Offset Right; (8)Keying to Mating Part:Yes; (9)Material - Metal:Phosphor Bronze, Stainless Steel; (10)Material - Plating Mating:Gold; (11)Material - Plating Termination:Tin; (12)Material - Resin:High Temperature Thermoplastic.

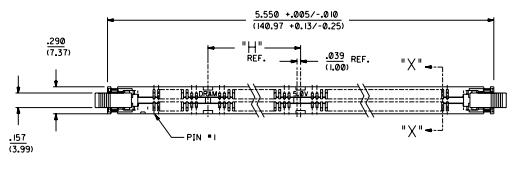

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 71736-0011 |
Molex |
DDR3 / DDR2 / DDR Connectors DIMM 8-BYTE DRAM SKT 168 positions |
Data Sheet |
Negotiable |
|
||||||||||||
