Product Summary
The B3F-4000 is a tactile switch. It has a wide range of models: 6 × 6mm, 12 × 12mm, side-operated, high-force, and gold-plated.
Parametrics
B3F-4000 specifications: (1)Switching capacity: 1 to 50mA, 5 to 24VDC(resistive load); (2)Ambient operating temprature: -25°C to 70°C at 60% max. humidity(with no icing or condnsation); (3)Ambient operating humidity: 35% to 85%(at 5 to 35°C); (4)Contact form: SPST-NO; (5)Contact resistance: 100mΩ max. (initial value)(rated: 1mA, 5VDC); (6)Insulation resistance: 100MΩ min.(at 250VDC); (7)Dielectric strength: 500VAC, 50/60 Hz for 1min; (8)Bounce time: 5ms max; (9)Vibration resistance: Malfunction: 10 to 55Hz, 1.5mm double amplitude.
Features
B3F-4000 features: (1)A positive click action plus a long life equal to that of a no-contact switch; (2)Radial models(taping specifications) that allow the use of general-purpose radial taping parts insertion machines have been added to the series; (3)Series also includes gold-plated models delivering long-term contact and insulation reliability; (4)Projected plunger types that allow the installation of B32-series special key tops are available.

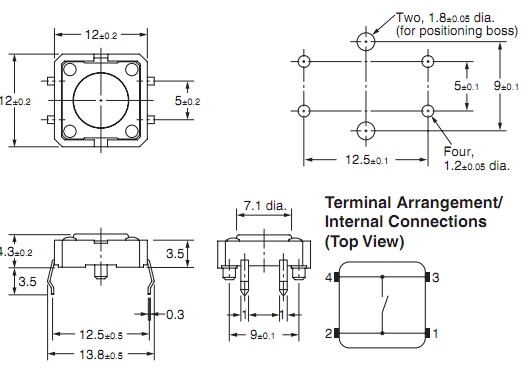

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B3F-4000 |
Omron Electronics |
Tactile & Jog Switches 12x12mm Std Ht 4.3 Gen Purpose 130g |
Data Sheet |
|
|
||||||||||||
 |
B3F-4000S |
Omron Electronics Inc-ECB Div |
SWITCH TACT 12MM 130GF H=4.3MM T |
Data Sheet |
|
|
||||||||||||
