Product Summary

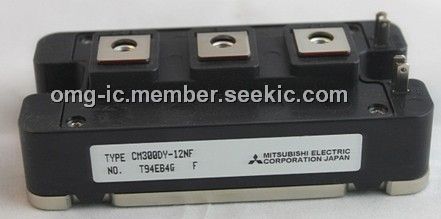

The CM300DY-12NF is a MITSUBISHI IGBT module, which is designed for high power switching.
Parametrics
CM300DY-12NF Absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current: 300 A; (4)Emitter current: 300 A; (5)Maximum collector dissipation: 780 W at TC = 25℃; (6)Junction temperature: -40 to +150℃; (7)Storage temperature: -40 to +125℃; (8)Isolation voltage: 2500 V at Main Terminal to base plate, AC 1.
Features
CM300DY-12NF Features: (1)IC: 300A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.
Diagrams
<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20126296031209.jpg"></P>
