Product Summary
The DS4E-S is a highly sensitive 1500V FCC surge breakdown voltage miniature relay. The typical applications of the DS4E-S include telecommunications,measuring devices, office equipment, computers and related equipment. DS relays are also recommended for a broad range of applications including business devices, audio systems, and industrial equipment.
Parametrics
DS4E-S specifications: (1)Initial contact resistance, max.:Max. 50mΩ(By voltage drop 6V DC 1A); (2)Nominal switching capacity(resistive load): 2A 30V DC; (3)Max. switching power(resistive load): 60W, 125VA; (4)Max. switching voltage: 220V DC, 250V AC; (5)Max. carrying current: 3A; (5)Min. switching capacity(Reference value): 10μA 10mV DC; (6)Nominal operating power Single side stable: 200mW; latching: 180mW.
Features
DS4E-S features: (1)Breakthrough height of 9.8mm; (2)Suitable for use in difficult environments; (3)Can be used with automatic solder and automatic wash systems; (4)Gold-clad twin contacts ensure high reliability; (5)Polarized magnetic circuits realize resistance to shock and vibration; (6)DIL terminal array enables use of IC sockets; (7)Widening scope of application with multicontact latching.

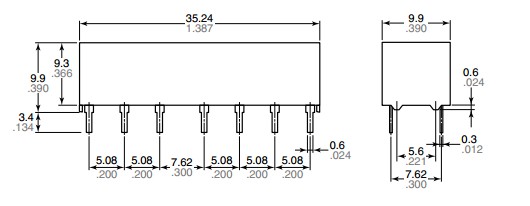

Diagrams
