Product Summary

The DSP2A-DC12V is an 8A miniature power relay in DS relay series. Its applications include: Office and industrial electronic devices, Terminal devices of information processing equipment, such as printer, data recorder, Office equipment(copier, facsimile), Measuring instruments, NC machines, temperature controllers and programmable logic controllers.

Parametrics

DSP2A-DC12V specifications: (1)Nominal switching capacity(resistance, max.): 5A, 250VAC, 5A, 30VDC; (2)Max. switching power(resistive load): 1250VA, 150W; (3)Max. switching voltage: 380VAC, 125VDC; (4)Max. switching current: 5AAC, DC; (5)Nominal operating power: 300mW; (6)Min. switching capacity(Reference value): 10mA, 5VDC.

Features

DSP2A-DC12V features: (1)Compact with high contact rating; (2)High switching capacity; (3)High sensitivity; (4)High breakdown voltage; (5)Latching types available; (6)Wide variation; (7)Sealed construction allows automatic washing; (8)Complies with safety standards.

Diagrams

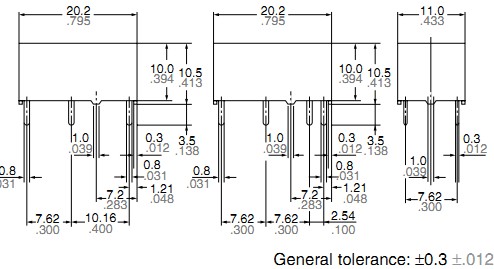

DSP2A-DC12V dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

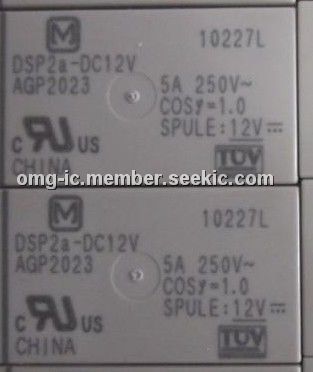

DSP2A-DC12V
DSP2A-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC DPST NO SEALED
Data Sheet
0-1: $3.63
1-25: $3.60
25-50: $3.31
50-100: $3.11
