EDE5116AJBG

0.45 ns, 84 Pin Plastic BGA, 512M bits DDR2 SDRAM, Four internal banks for concurrent operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~9.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~9.90

PartNumber:: EDE5116AJBG

Brand:: Elpida Memory - Elpida | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. fiona's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:EDE5116AJBG
US $0.10 - 9.90
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EDE5116AJBG is a 512M bits DDR2 SDRAM. It must be powered up and initialized in a predefined manner. Operational procedures other than those specified may result in undefined operation. The EDE5116AJBG should be in all bank precharge with CKE already high prior to writing into the mode register. The mode register set command cycle time (tMRD) is required to complete the write operation to the mode register.

Parametrics

EDE5116AJBG absolute maximum ratings: (1)Power supply voltage:-1.0 to +2.3V; (2)Power supply voltage for output:-0.5 to +2.3V; (3)Input voltage:-0.5 to +2.3V; (4)Output voltage:-0.5 to +2.3V; (5)Storage temperature:-55 to +100℃; (6)Power dissipation:1.0W; (7)Short circuit output current:50mA.

Features

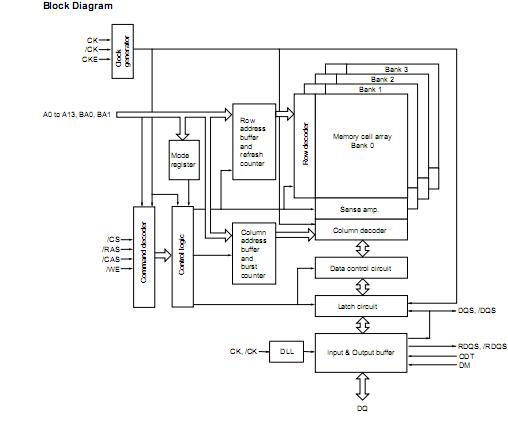

EDE5116AJBG features: (1)Double-data-rate architecture; two data transfers per clock cycle ; (2)The high-speed data transfer is realized by the 4 bits prefetch pipelined architecture ; (3)Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the receiver ; (4)DQS is edge-aligned with data for READs; center-aligned with data for WRITEs ; (5)Differential clock inputs (CK and /CK) ; (6)DLL aligns DQ and DQS transitions with CK transitions ; (7)Commands entered on each positive CK edge; data and data mask referenced to both edges of DQS ; (8)Data mask (DM) for write data ; (9)Posted /CAS by programmable additive latency for better command and data bus efficiency ; (10)Off-Chip-Driver Impedance Adjustment and On-Die-Termination for better signal quality ; (11)Programmable RDQS, /RDQS output for making × 8 organization compatible to × 4 organization ; (12)/DQS, (/RDQS) can be disabled for single-ended Data Strobe operation.
