Product Summary
The FBA08T12H is a 80mm thin fan.
Parametrics
FBA08T12H absolute maximum ratings: (1)Rated Voltage: 12V; (2)Operating Voltage: 7 to 13.8V; (3)Rated Current: 200mA; (4)Rated Input: 2.40W; (5)Nominal Speed: 3100r/min; (6)Maximum Air Flow, m3/min: 0.95; (7)Maximum Air Flow, CFM: 33.5; (8)Maximum Air Pressure, mmH20: 3.2; (9)Maximum Air Pressure, Pa: 31.4; (10)Noise, dB-A: 34.0.
Features
FBA08T12H features: (1)Operating Temperature: -10℃ to +70℃(65％ RH); (2)Storage Temperature: -40℃ to +75℃(65％ RH); (3)Bearing Type: Hydro Wave; (4)Aerodynamic blade and venturi design; (5)Locked rotor protection and auto-start function; (6)Lower circuit noise by new IC; (7)Optional third wire lead signal (Locked rotor alarm sensor).

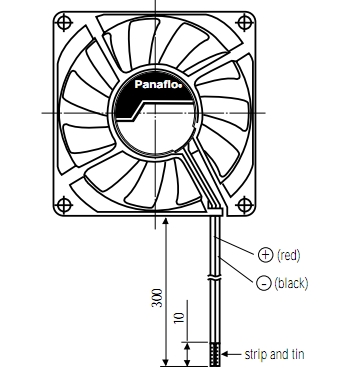

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FBA08T12H |
|
FAN 12VDC 2.4W 80MM FBA HYDRO |
Data Sheet |
Negotiable |
|
||||
 |
FBA08T12HS |
|
FAN 80X15MM 12 VOLT W/LOCKED R |
Data Sheet |
Negotiable |
|
||||
