Product Summary

The G2R-1 is a power relay for a variety of purposes with various models. Its applications include household products.

Parametrics

G2R-1 spectifications: (1)Rated voltage: 12VDC; (2)Rated current(50/60Hz): 43.6mA; (3)Coil resistance: 1100Ω; (4)Coil inductance armature OFF: 4.27; armature ON: 8.55; (5)Must operate voltage: 70% max. of rated voltage; (6)Must release voltage: 15% min. of rated voltage; (7)Max. voltage: 170% of rated voltage(at 23°C); (8)Power consumption: Approx. 0.53W.

Features

G2R-1 features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8mm/8m; (4)Models with CTI250 material available; (5)High-sensitivity (360mW) and high-capacity (16A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

Diagrams

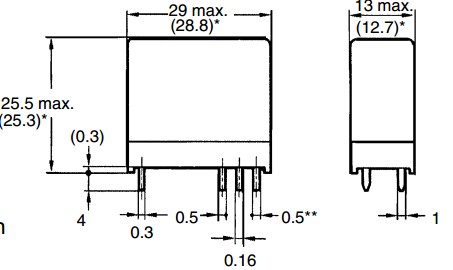

G2R-1 dimensions
