Product Summary
The HCPL-4506-000E is an Intelligent Power Module and Gate Drive Interface Optocoupler. It contains a GaAsP LED. The LED is optically coupled to an integrated high gain photo detector. Minimized propagation delay difference between devices makes the HCPL-4506-000E excellent solutions for improving inverter efciency through reduced switching dead time. The applications of the HCPL-4506-000E are IPM isolation, Isolated IGBT/MOSFET gate drive, AC and brushless DC motor drives, Industrial inverters.
Parametrics
HCPL-4506-000E absolute maximum ratings: (1)Storage Temperature:-55 to 125℃; (2)Operating Temperature:-40 to 100℃; (3)Average Input Current:25mA; (4)Peak Input Current(50% duty cycle, ≤1 ms pulse width):50mA; (5)Peak Transient Input Current(<1 μs pulse width, 300 pps): 1.0A; (6)Reverse Input Voltage:5V; (7)Average Output Current (Pin 6):15mA; (8)Resistor Voltage (Pin 7):-0.5V to VCC; (9)Output Voltage (Pin 6-5):-0.5V to 30V; (10)Supply Voltage (Pin 8-5):-0.5V to 30V; (11)Output Power Dissipation:100mW; (12)Total Power Dissipation:145mW; (13)Lead Solder Temperature:260℃ for 10s.
Features
HCPL-4506-000E features: (1)Performance specifed for bommon IPM applications over industrial temperature range: -40℃ to 100℃; (2)Fast maximum propagation delays: tPHL = 480 ns, tPLH = 550 ns; (3)Minimized Pulse Width Distortion PWD = 450 ns; (4)15 kV/μs minimum common mode transient immunity at VCM = 1500 V; (5)CTR > 44% at IF = 10 mA; (6)Safety approval: ; (7)UL Recognized:-3750 V rms / 1 min. ; (8)IEC/EN/DIN EN 60747-5-2 Approved: VIORM = 630 Vpeak.

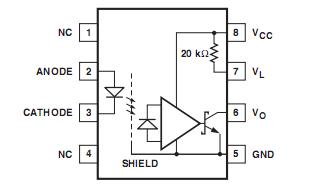

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-4506-000E |
Avago Technologies |
Logic Output Optocouplers 1MBd 1Ch 10mA |
