Product Summary
The LM119J is a precision high speed dual comarator fabricated on a single monolithic chip. It is designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. Further, the LM119J has higher gain and lower input currents than devices like the LM710. The uncommitted collector of the output stage makes it compatible with RTL, DTL and TTL.
Parametrics
LM119J absolute maximum ratings: (1)Total supply voltage: 36V; (2)Output to negative supply voltage: 36V; (3)Ground to negative supply voltage: 25V; (4)Ground to positive supply voltage: 18V; (5)Differential input voltage: ±5V; (6)Input voltage: ±15V; (7)Power dissipation: 500mW; (8)output short circuit duration: 10sec; (9)ESD rating(1.5kΩ in series with 100pF).
Features
LM119J features: (1)Two independent comparators; (2)Operates from a single 5V supply; (3)Typically 80ns response time at ±15V; (4)Minimum fan-out of 2 each side; (5)Maximum input current of 1μA over temperature; (6)Inputs and outputs can be isolated from system ground; (7)High common mode slew rate.

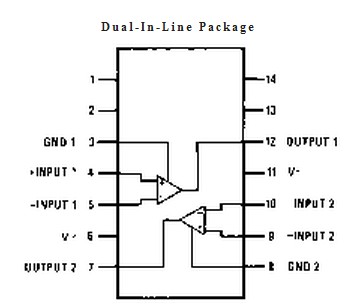

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM119J |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
|
LM119J-QMLV |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
|
LM119JRLQMLV |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
|
LM119JRQMLV |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
|
LM119J-SMD |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
