Product Summary
The LM565H is a general purpose phase locked loop. It contains a stable, highly linear voltage controlled oscillator for low distortion FM demodulation, and a double balanced phase detector with good carrier suppression. The VCO frequency of the LM565H is set with an external resistor and capacitor, and a tuning range of 10:1 can be obtained with the same capacitor. The applications of the LM565H include: Data and tape synchronization, Modems, FSK demodulation, FM demodulation, Frequency synthesizer, Tone decoding, Frequency multiplication and division, SCA demodulators, Telemetry receivers, Signal regeneration, Coherent demodulators.
Parametrics
LM565H absolute maximum ratings: (1)Supply Voltage: ±12V; (2)Power Dissipation: 1400 mW; (3)Differential Input Voltage: ±1V; (4)Operating Temperature Range: -55℃ to +125℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature(Soldering, 10 sec.): 260℃.
Features
LM565H features: (1)200 ppm/℃ frequency stability of the VCO; (2)Power supply range of ±5 to ±12 volts with 100 ppm/% typical; (3)0.2% linearity of demodulated output; (4)Linear triangle wave with in phase zero crossings available; (5)TTL and DTL compatible phase detector input and square wave output; (6)Adjustable hold in range from ±1% to > ±60%.

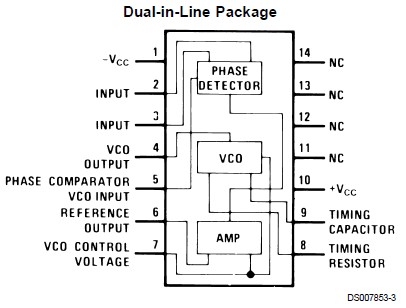

Diagrams
 |
