The MC13783VK is a highly integrated power management and audio component dedicated to handset and portable applications covering GSM, GPRS, EDGE, and UMTS standards. The MC13783VK implements high-performance audio functions suited to high-end applications such as smartphones and UMTS handsets.
Parametrics
MC13783VK absolute maximum ratings: (1)Charger Input Voltage: -0.3 to +20V; (2)USB Input Voltage if Common to Charger: -0.3 to +20V; (3)USB Input Voltage if Separate from Charger: -0.3 to +5.50V; (4)Battery Voltage: -0.3 to +4.65V; (5)Coincell Voltage: -0.3 +4.65V; (6)Ambient Operating Temperature Range: -30 to +85°C; (7)Operating Junction Temperature Range: -30 to +125°C; (8)Storage Temperature Range: -65 to +150°C; (9)ESD Protection Human Body Model: 2.5kV.
Features
MC13783VK features: (1)Battery charger interface for wall charging and USB charging; (2)10 bit ADC for battery monitoring and other readout functions; (3)Buck switchers for direct supply of the processor cores; (4)Boost switcher for backlight and USB on the go supply; (5)Regulators with internal and external pass devices; (6)Transmit amplifiers for two handset microphones and a headset microphone; (7)Receive amplifiers for earpiece, loudspeaker, headset and line out; (8)13 bit Voice CODEC with dual ADC channel and both narrow and wide band sampling; (9)13 bit Stereo recording from an analog input source such as FM radio; (10)16 bit Stereo DAC supporting multiple sample rates; (11)Dual SSI audio bus with network mode for connection to multiple devices; (12)Power control logic with processor interface and event detection; (13)Real time clock and crystal oscillator circuitry; (14)Dual SPI control bus with arbitration mechanism; (15)Multiple backlight drivers and LED control including funlight support; (16)USB FS/LS transceiver with OTG and CEA-936-A Carkit support; (17)Touchscreen interface.

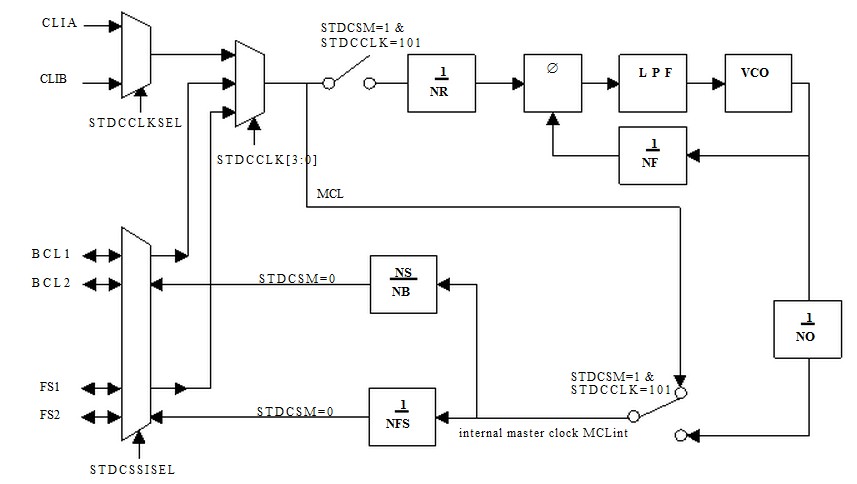

Diagrams
