Product Summary
MC1413BDR2G is a seven NPN Darlington connected transistor.
Parametrics
MC1413BDR2G absolute maximum ratings: (1)Output Voltage, VO: 50 V; (2)MC1413BDR2G Input Voltage, VI: 30 V; (3)Collector Current — Continuous, IC: 500 mA; (4)Base Current — Continuous, IB: 25 mA; (5)MC1413BDR2G Operating Ambient Temperature Range, TA: -40 to +85℃; (6)Storage Temperature Range, Tstg: -55 to +150℃; (7)MC1413BDR2G Junction Temperature, TJ: 150℃.
Features
MC1413BDR2G features: (1)well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications; (2)MC1413BDR2G high breakdown voltage and internal suppression diodes; (3)MC1413BDR2G freedom from problems associated with inductive loads; (4)Peak inrush currents to 500 mA; (5)can drive incandescent lamps.

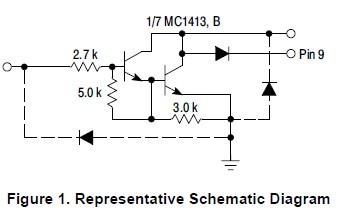

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1413BDR2 |
ON Semiconductor |
Transistors Darlington High Voltage High |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC1413BDR2G |
ON Semiconductor |
Transistors Darlington High Voltage High Current Darlington |
Data Sheet |
|
|
||||||||||||
