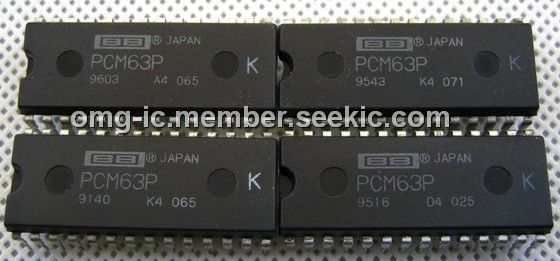

Product Summary

The PCM63P-K is a precision 20-bit digital-to-analog converter with ultra-low distortion (–96dB max with a full scale output; PCM63P-K). Incorporated into the PCM63P-K is a unique Colinear dual-DAC per channel architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero. The PCM63P-K also features a very low noise (116dB max SNR; A-weighted method) and fast settling current output (200ns typ, 2mA step) which is capable of 16-times oversampling rates.

Parametrics

PCM63P-K absolute maximum ratings: (1)+VA, +VD to ACOM/DCOM: 0V to +8V; (2)–VA, –VD to ACOM/DCOM: 0V to –8V; (3)–VA, –VD to +VA, +VD: 0V to +16V; (4)ACOM to DCOM: ±0.5V; (5)Digital Inputs (pins 18, 20, 21) to DCOM: –1V to +VD; (6)Power Dissipation: 500mW; (7)Lead Temperature, (soldering, 10s): +300℃; (8)Max Junction Temperature: 165℃; (9)Thermal Resistance, θJA: 70℃/W.

Features

PCM63P-K features: (1)Colinear 20-bit audio dac; (2)Near-ideal low level operation; (3)Glitch-free output; (4)Ultra low –96dB max THD+N (Without ExternaAdjustment); (5)116dB SNR min (A-Weight Method); (6)Industry std serial input format; (7)Fast (200ns) current output (±2mA; ±2% max); (8)Capable of 16x oversampling; (9)Complete with reference.

Diagrams

<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20126291113173.jpg"></P>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCM63P-K
PCM63P-K
Texas Instruments
IC SERIAL INPUT 20 BIT D/A 28DIP
Data Sheet
Negotiable
