Product Summary

The UPC1420CA is a bipolar analog integrated circuit. It enables color synchronization, horizontal synchronization and vertical synchronization to be completely adjustment free, thus greatly reducing the number of peripheral parts and the number of adjustment. The UPC1420CA is contained in a 48 pin shrink DIP package suited to high-density mounting.

Parametrics

UPC1420CA absolute maximum ratings: (1)Supply voltage: 13.5V; (2)Input signal voltage: 5Vp-p; (3)Pulse input voltage: V14 Vp-p; (4)Control signal voltage: V14 V; (5)Output current: -50mA; (6)Package allowable loss: 1.5W; (7)Operating temperature: -10 to +80℃; (8)Storage temperature: -40 to +150℃.

Features

UPC1420CA features: (1)Completely adjustment-free color synchronization and horizontal/vertical synchronization; (2)Clcar picture with secondary differentiation of video; (3)Horizontally double AFC enables stable synchronization even with VTR; (4)PAL/NTSC mode selectable.

Diagrams

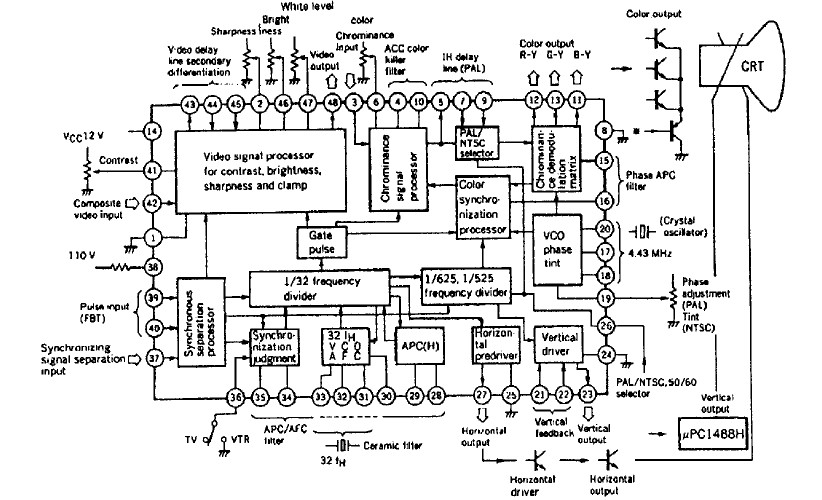

UPC1420CA block diagram
