Product Summary
The ADXL203CE is a high precision, low power, complete single- and dual-axis accelerometer with signal conditioned voltage outputs, all on a single, monolithic IC. It measures acceleration with a full-scale range of ±1.7g, ±5g, ±18g. The ADXL203CE can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity).
Parametrics
ADXL203CE specifications: (1)Range: +/-1.7g; (2)Sensitivity: 1000mV/g; (3)Output Type: Analog; (4)Typical Bandwidth (kHz): 2.5kHz; (5)Noise Density(μg/rtHz): 110; (6)Supply Current :0.7mA.
Features
ADXL203CE features: (1)High performance, single-axis accelerometer on a single IC chip; (2)5mm × 5mm × 2mm LCC package; (3)1 mg resolution at 60Hz; (4)Low power: 700μA at VS = 5V (typical); (5)High zero g bias stability; (6)High sensitivity accuracy -40°C to +125°C temperature range; (7)X and Y axes aligned to within 0.1° (typical); (8)BW adjustment with a single capacitor; (9)Single-supply operation; (10)3500 g shock survival; (11)RoHS-compliant.

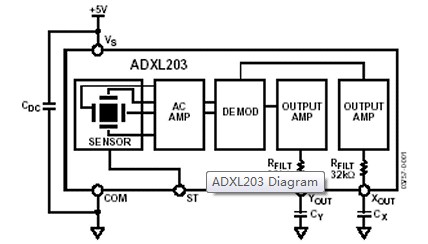

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ADXL203CE |
![]() |
![]() IC ACCELEROMETER DUAL-AXIS 8CLCC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||
![]() |
![]() ADXL203CE-REEL |
![]() |
![]() IC ACCELEROMETER DUAL-AXIS 8CLCC |
![]() Data Sheet |
![]()
|
|
