B3F-1000

Tactile switch, 1 to 50mA, 5 to 24VDC, B3F-1000

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.20

PartNumber:: B3F-1000

Brand:: OMRON Corporation - Omron | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. fiona's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-29

From Other Seller

Part Number:B3F-1000
US $0.12 - 0.20
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

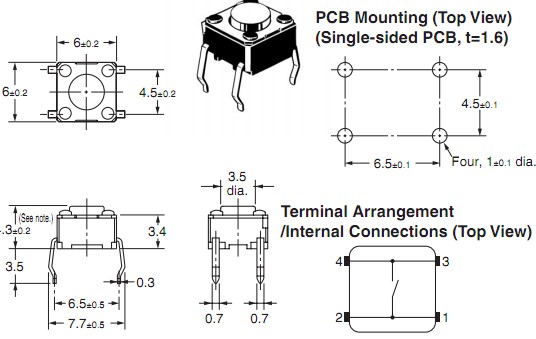

The B3F-1000 is a tactile switch. It has a wide range of models: 6 × 6mm, 12 × 12mm, side-operated, high-force, and gold-plated.

Parametrics

B3F-1000 specifications: (1)Switching capacity: 1 to 50mA, 5 to 24VDC(resistive load); (2)Ambient operating temprature: -25°C to 70°C at 60% max. humidity(with no icing or condnsation); (3)Ambient operating humidity: 35% to 85%(at 5 to 35°C); (4)Contact form: SPST-NO; (5)Contact resistance: 100mΩ max. (initial value)(rated: 1mA, 5VDC); (6)Insulation resistance: 100MΩ min.(at 250VDC); (7)Dielectric strength: 500VAC, 50/60 Hz for 1min; (8)Bounce time: 5ms max; (9)Vibration resistance: Malfunction: 10 to 55Hz, 1.5mm double amplitude.

Features

B3F-1000 features: (1)A positive click action plus a long life equal to that of a no-contact switch; (2)Radial models(taping specifications) that allow the use of general-purpose radial taping parts insertion machines have been added to the series; (3)Series also includes gold-plated models delivering long-term contact and insulation reliability; (4)Projected plunger types that allow the installation of B32-series special key tops are available.
