Product Summary
The BD9897FS is a DC-AC inverter control IC with a silicon monolithic integrated circuit.
Parametrics
BD9897FS absolute maximum ratings: (1)Supply voltage, VCC: 36V; (2)BST pin, BST: 40V; (3)SW pin, SW: 36V; (4)BST-SW voltage difference, BST-SW: 7V; (5)Operating temperature range, Topr: -40 to +85°C; (6)Storage temperature range,Tstg: -55 to +150°C; (7)Maximum junction temperature, Tjmax: +150°C; (8)Power dissipation, Pd: 950mW.
Features
BD9897FS features: (1)36V high voltage process; (2)1ch control with full-bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with soft start control; (5)Short circuit protection with timer latch; (6)Under voltage lock out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)Synchronous operating the other BD9897FS IC; (9)Burst mode controlled by PWM and DC input; (10)Output liner control by external DC voltage.

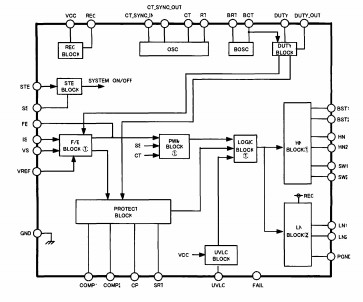

Diagrams
