Product Summary

The CA6741T is a Cascadable Amplifier. The CA6741T is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This single stage bipolar transistor feedback amplifier design displays impressive performance over a broadband frequency range. Use of an impedance transformer offers the benefit of high dynamic range and high efficiency.

Parametrics

CA6741T absolute maximum ratings: (1)Storage Temperature: -62℃ to +125℃; (2)Case Temperature: +125℃; (3)DC Voltage: +17 V; (4)Continuous Input Power: 13 dBm; (5)Short Term Input power(1 minute max.): 50 mW; (6)Peak Power (3 Gsec max.): 0.5 W; (7)“S” Series Burn-In Temperature (case): +125℃.

Features

CA6741T features: (1)available in surface mount; (2)high efficiency: +16 dbm (typ.), output power at 32 ma (typ.); (3)low noise figure: <4.0 db (typ.); (4)wide power supply range: +5 to +15 volts.

Diagrams

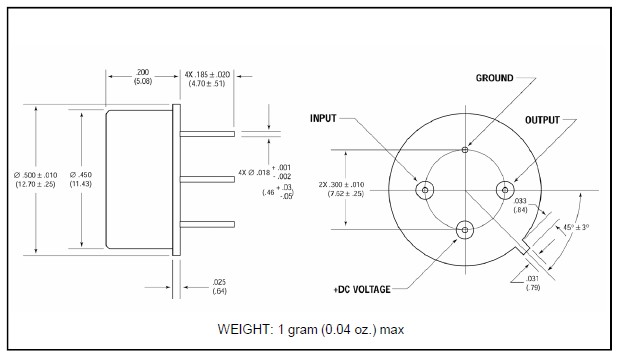

CA6741T dimensions
