Product Summary

The DS4E-M is a highly sensitive 1500V FCC surge withstanding miniature relay. The typical applications of the DS4E-M include telecommunication equipment, office equipment, computer peripherals, security equipment and measuring instrumentation.

Parametrics

DS4E-M specifications: (1)Initial contact resistance, max. (By voltage drop 6V DC 1A): 50mΩ; (2)Max. switching power: 60W, 125VA; (3)Max. switching voltage: 220V DC, 250V AC; (4)Max. switching current: 2A DC, AC; (5)Max. carrying current: 3A DC, AC.

Features

DS4E-M features: (1)High sensitivity: 200mW pick-up power, 100mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60W, 125VA; (4)High breakdown voltage: 1500V FCC surge between open contacts, 1000V AC between open contacts; (5)Bifurcated conacts are standards.

Diagrams

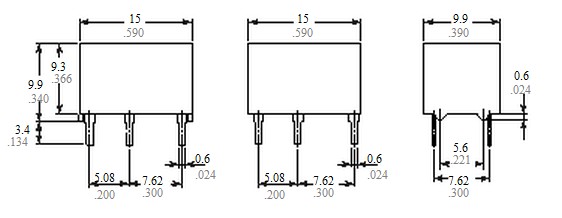

DS4E-M dimensions
