Product Summary
The TPS71533DCKR is a low-dropout (LDO) voltage regulator. It offers the benefits of high input voltage, low-dropout voltage, low-power operation, and miniaturized packaging. The TPS71533DCKR, which operates over an input range of 2.5V to 24V, is stable with any capacitor (≥0.47μF). The applications of the TPS71533DCKR are Ultra-Low Power Microcontrollers, Cellular/Cordless Handsets, Portable/Battery-Powered Equipment.
Parametrics
TPS71533DCKR absolute maximum ratings: (1)V IN range:-0.3V to +24V; (2)V OUT range:-0.3V to +16.5V; (3)Peak output current:Internally limited; (4)ESD rating, HBM:2kV; (5)ESD rating, CDM:500V; (6)Junction temperature range:-40°C to +150°C; (7)Storage temperature range:-65°C to +150°C.
Features
TPS71533DCKR features: (1)24-V Maximum Input Voltage; (2)Low 3.2-μA Quiescent Current at 50 mA; (3)Stable With Any Capacitor (≥0.47μF); (4)50-mA Low-Dropout Regulator; (5)Available in 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, 5.0V, and Adjustable (1.2V to 15V); (6)Minimum/Maximum Specified Current Limit; (7)5-Pin SC70/SOT-323 (DCK) Package; (8):-40°C to +125°C Specified Junction Temperature Range.

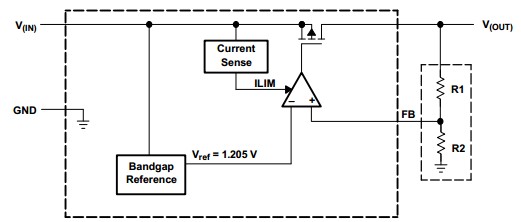

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS71533DCKR |
Texas Instruments |
Low Dropout (LDO) Regulators 50mA 3.3V HI LDO |
Data Sheet |
|
|
||||||||||||
|
TPS71533DCKRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 50-mA 3.3-V High Input Voltage |
Data Sheet |
|
|
||||||||||||
