Product Summary

The SI4425BDY-T1-E3 is a p－channel 30－v (d－s) mosfet.

Parametrics

SI4425BDY-T1-E3 absolute maximum ratings: (1)Drain-Source Voltage VDS: －30V; (2)Gate-Source Voltage VGS: 20V; (3)Pulsed Drain Current IDM: －50A; (4)continuous Source Current (Diode Conduction)a IS: －2.1, －1.3A; (5)Continuous Drain Current (TJ = 150℃)a TA = 25℃ ID: －11.4, －8.8A; (6)Continuous Drain Current (TJ = 150℃)a TA = 70℃ ID: －9.1, －7.0A.

Features

SI4425BDY-T1-E3 features: (1)TrenchFET Power MOSFET; (2)Advanced High Cell Density Process.

Diagrams

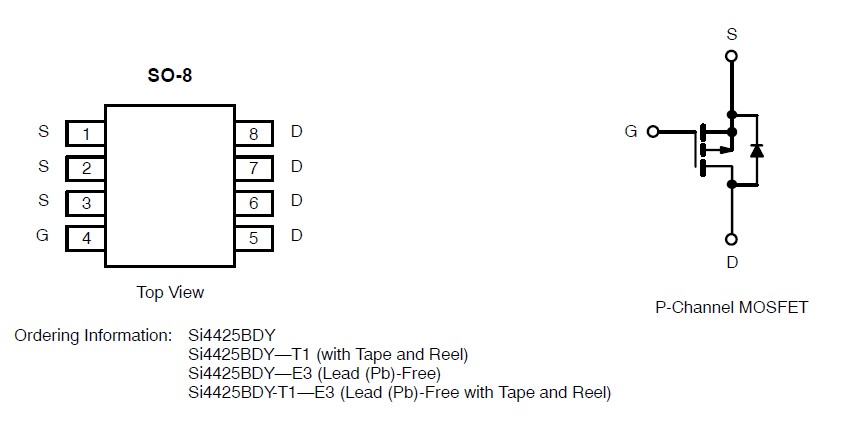

SI4425BDY-T1-E3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI4425BDY-T1-E3
SI4425BDY-T1-E3
Vishay/Siliconix
MOSFET 30V 11A 2.5W
Data Sheet
0-1: $1.33
1-25: $1.02
25-50: $0.97
50-100: $0.92
