SST25VF010A-33-4C-SAE

Product Summary

The SST25VF010A-33-4C-SAE is a 1 Mbit SPI Serial Flash. It features a four-wire, SPI-compatible interface that allows for a low pin-count package occupying less board space and ultimately lowering total system costs. The SST25VF010A-33-4C-SAE is manufactured with SST’s proprietary, high performance CMOS SuperFlash Technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST25VF010A-33-4C-SAE is offered in both 8-lead SOIC and 8-contact WSON packages.

Parametrics

SST25VF010A-33-4C-SAE absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential:-0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential:-2.0V to VDD+2.0V; (5)Package Power Dissipation Capability (TA = 25℃):1.0W; (6)Surface Mount Solder Reflow Temperature:260℃ for 10 seconds; (7)Output Short Circuit Current:50 mA.

Features

SST25VF010A-33-4C-SAE features: (1)Single 2.7-3.6V Read and Write Operations; (2)Serial Interface Architecture:SPI Compatible: Mode 0 and Mode 3; (3)33 MHz Max Clock Frequency; (4)Superior Reliability: Endurance: 100,000 Cycles(typical), Greater than 100 years Data Retention; (5)Low Power Consumption: Active Read Current: 7 mA(typical), Standby Current: 8 μA (typical); (6)Flexible Erase Capability: Uniform 4 KByte sectors, Uniform 32 KByte overlay blocks; (7)Fast Erase and Byte-Program:Chip-Erase Time: 70 ms (typical), Sector- or Block-Erase Time: 18 ms (typical), Byte-Program Time: 14 μs (typical); (8)Auto Address Increment (AAI) Programming: Decrease total chip programming time over ; (9)Byte-Program operations:End-of-Write Detection, Software Status; (10)Hold Pin (HOLD#): Suspends a serial sequence to the memory without deselecting the device; (11)Write Protection (WP#): Enables/Disables the Lock-Down function of the status register; (12)Software Write Protection: Write protection through Block-Protection bits in status register.

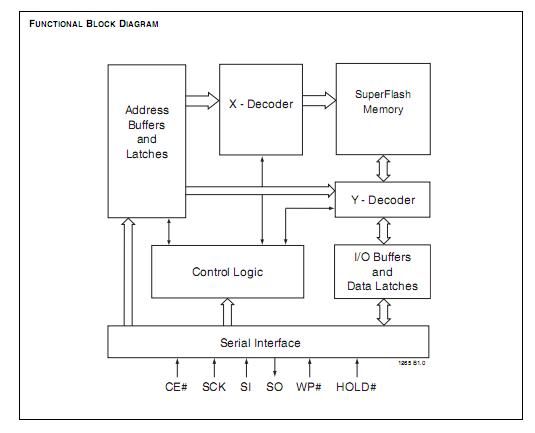

Diagrams
