Product Summary
The TQ2-L2-5V is a low profile 2 form C relay.
Parametrics
TQ2-L2-5V characteristics: (1)Nominal voltage: 5V DC; (2)Set voltage: 3.75V DC(max.); (3)Reset voltage: 3.75V DC(min.); (4)Nominal operating current: 40mA(±10%); (5)Coil resistance: 125Ω(±10%); (6)Nominal operating power: 200mW; (7)Max. allowable voltage: 7.5V DC.
Features
TQ2-L2-5V features: (1)High sensitivity:140mW power consumption(single side stable type); (2)Surge voltage withstand: 1500V FCC; (3)Sealed construction allows automatic washing; (4)Self-clinching terminal also available; (5)M.B.B. contact types available.

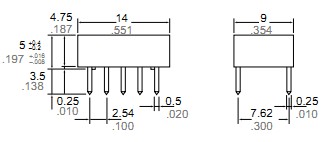

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TQ2-L2-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 5VDC DPDT 2 COIL LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TQ2-L2-5V-1 |
|
RELAY TELECOM DPDT 1A 5V |
Data Sheet |
Negotiable |
|
||||||||||||
|
TQ2-L2-5V-3 |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form A 5V 30VDC PCB Terminal |
Data Sheet |
|
|
||||||||||||
