Product Summary
The G2R-1-E is a power PCB relay.
Parametrics
G2R-1-E spectifications: (1)Rated voltage: 12VDC; (2)Rated current(50/60Hz): 43.6mA; (3)Coil resistance: 1100Ω; (4)Coil inductance armature OFF: 4.27; armature ON: 8.55; (5)Must operate voltage: 70% max. of rated voltage; (6)Must release voltage: 15% min. of rated voltage; (7)Max. voltage: 170% of rated voltage(at 23°C); (8)Power consumption: Approx. 0.53W.
Features
G2R-1-E features: (1)Creepage distance of 8.0mm(3.1 in) min. between coil and contact; (2)Dual-winding latching type available; (3)Plug-in and quick-connect terminals available; (4)High sensitivity(360mW) and high capacity(16A) types available; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6)Continuous coil rating; (7)Safety-oriented design assuring high surge resistance: 10000V min. between coil and contacts.

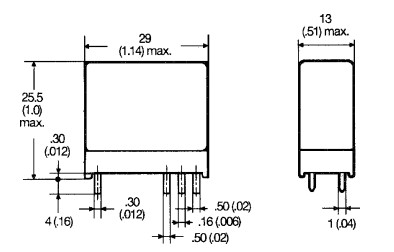

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G2R-1-E AC12 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A 12VAC Thru-Hole 65 Ohm |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E AC220 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A 220VAC Thru-Hole 25K Ohm |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E DC18 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A Thru-Hole 18VDC |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E DC9 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A Thru-Hole 9VDC |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E-AC110 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A Thru-Hole 110VAC 4.6K Ohm |
Data Sheet |
|
|
||||||||||||||||||
 |
G2R-1-E-AC120 |
|
RELAY GEN PURPOSE SPDT 16A 120V |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E-AC24 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A Thru-Hole 24VAC 260 Ohm |
Data Sheet |
|
|
||||||||||||||||||
|
G2R-1-E-AC240 |
Omron Electronics |
General Purpose / Industrial Relays SPDT 16A Thru-Hole 240VAC 30K Ohm |
Data Sheet |
|
|
||||||||||||||||||
