Product Summary

The HIH-3610-002 is a humidity sensor. It is designed specifically for high volume OEM users. The applications of the HIH-3610-002 include refrigeration, drying, metrology, battery-powered systems, OEM assemblies.

Parametrics

HIH-3610-002 specifications: (1)Voltage supply: 4Vdc to 5.8Vdc; (2)Current supply: 200μA at 5Vdc; (3)Voltage output, Vsupply=5Vdc: 0.8Vdc to 3.9Vdc output.

Features

HIH-3610-002 features: (1)Molded thermoset plastic housing with cover; (2)Linear voltage output vs %RH; (3)Laser trimmed interchangeability; (4)Low power design; (5)High accuracy; (6)Fast response time; (7)Stable, low drift performance; (8)Chemically resistant.

Diagrams

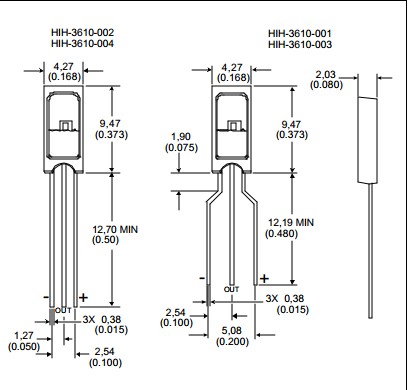

HIH-3610-002 dimensions
