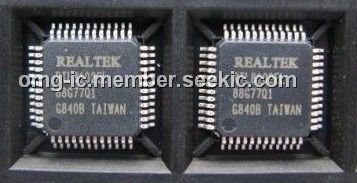

Product Summary

The RTL8102EL is a highly integrated, cost-effective single-chip Fast Ethernet controller that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. The RTL8102EL also supports the Advanced Configuration Power management Interface (ACPI), PCI power management for modern operating systems that are capable of Operating System Directed Power Management (OSPM) to achieve the most efficient power management possible. The RTL8100B(L) does not support CardBus mode as the RTL8139C does.

Parametrics

RTL8102EL specifications: (1)On the conditions of IOH= -8mA, VOH Minimum High Level Output Voltage: min=0.9 * Vcc, max=Vcc V; (2)On the conditions of IOL= 8mA, VOL Maximum Low Level Output Voltage: max=0.1 * Vcc V; (3)VIH Minimum High Level Input Voltage: min=0.5 * Vcc, max=Vcc+0.5 V; (4)VIL Maximum Low Level Input Voltage: min=-0.5V, max=0.3 * Vcc V; (5)On the conditions of VIN=VCC or GND, IIN Input Current: min=-1.0μA, max=1.0μA; (6)On the conditions of VOUT=VCC or GND, IOZ Tri-State Output Leakage Current: min=-10μA, max=10μA.

Features

RTL8102EL features: (1)100 pin QFP/LQFP; (2)Integrated fast ethernet MAC, physical chip and transceiver in one chip; (3)10Mb/s and 100Mb/s operation; (4)Supports 10Mb/s and 100Mb/s N-way auto-negotiation operation; (5)Supports 25MHz crystal or 25MHz OSC as the internal clock source. The frequency deviation of either crystal or OSC must be within 50PPM; (6)Compliant to PC99/PC2001 standard.

Diagrams

<P><IMG border=0 alt="RTL8102EL block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/20126296822189.jpg"></P>
